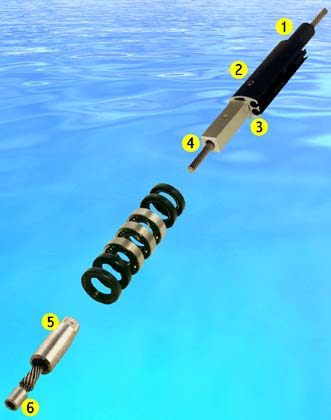

Head Sail Furler Assembly

  1. Silence Tube
    There is a full length silence tube between spar connectors. No metal to metal contact.

  2. Monel Rivets
     Are used to fasten spar connectors. Simple, rugged.

  3. Twin Grooves
    The main spar has two large grooves to fit bolt rope sails. All models can incorporate the downloader.

  4. Spar Connectors
    Are machined on the sides to give precision fit, which give maximum torsional strength.

  5. Rylock
    Impossible to have crossed wires on  assembly due to the button.

  6. Button


Stainless Steel
Halyard car.

Maintenance
Bearings in main lower unit and halyard car are precision hardened and ground sealed in neoprene, which ensures a maintenance free system.

Positive Locking Pawl
Our system has a positive locking mechanical pawl. Like your primary winch. When you reef, drum is locked at every revolution, giving maximum sailing performance. Other furling systems, when reefed are continually moving, due to stretch of the reef line. Pawl is released by a simple lever (hyfield) at helmsman position. This feature is only available on "Reef Rite". With a normal furling system, a broken reef line means you suddenly have full sail.

Radial Adjustment
360o adjustment given to accurately align rope belt to the first rope guide.

Forestay Adjustment
All Models.

Spares
Bearing and seals are available throughout the world.
